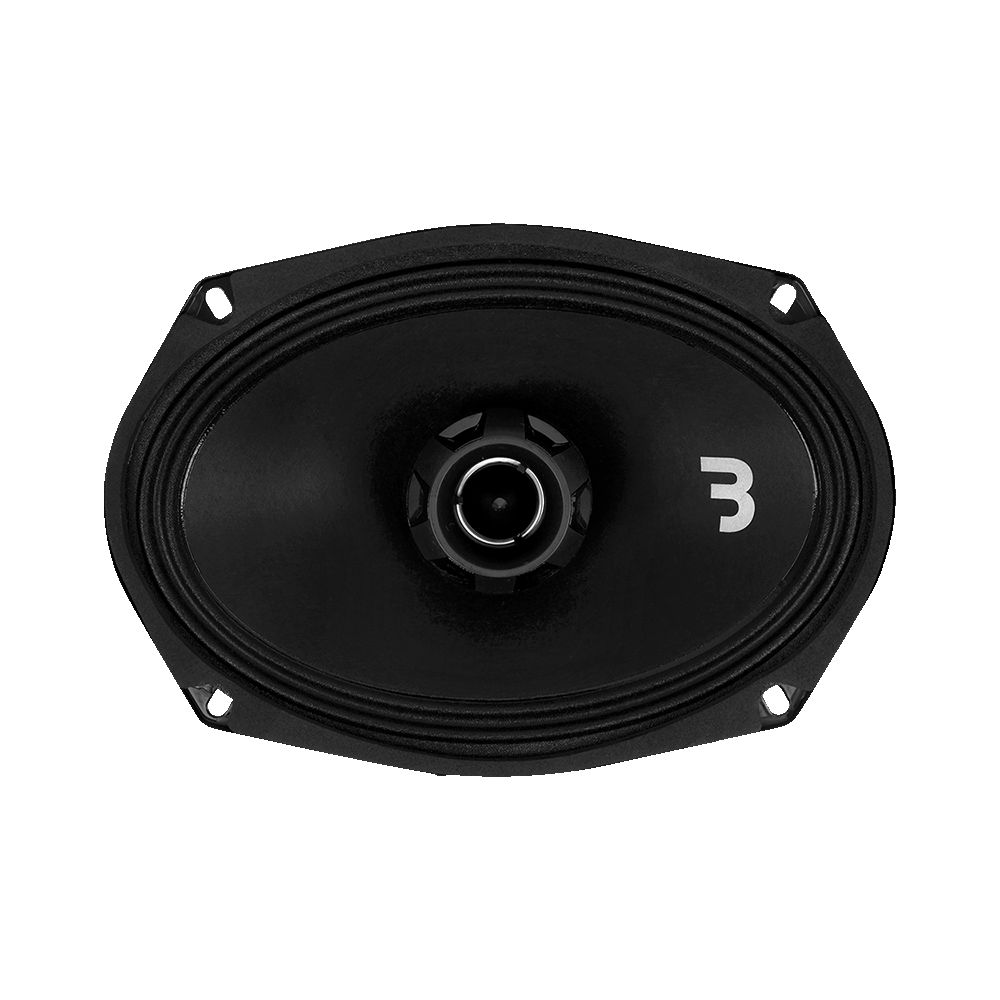

SPL Elite SE690CX

An awesome 6×9-inch coaxial speaker.

SE690CX

Description

Bass Habit SPL Elite SE690CX is a 6×9″ coaxial speaker that can produce awesome amounts of sound. A speaker that sparks joy in every possible way, and totally deserving of the title “SPL Elite”. The great combination of midbass/midrange speaker with an unpressed paper cone and M-Roll Cloth-surround, together with a solid 25mm titanium tweeter, guarantees that the SE165CX makes it easy to create a loud SPL system.



The Bass Habit CX series is built to handle just about anything. A tough steel basket, robust voice coil (1.75″), and oversized ferrite/neodymium magnets. Thanks to smart design choices, the speaker has a sensitivity of 97 dB. The power handling capacity is 180W (RMS), resulting in a really big sound together with a powerful amplifier!



The large frequency range and the fact that it is a point source (directed) sound source makes the SE690X incredibly flexible in terms of mounting options. You can easily place the speakers in the door panels, on the rear shelf or in an enclosure.

Additional information

Series

Elite

Component

Speaker

Size

6×9 inch

Nominal impedance

4 Ohm

Power RMS

180W

Power MAX

360W

Freq. response

90Hz – 20kHz

Sensitivity

97 dB

Mounting depth

81 mm

Mounting diameter

165×225 mm

Unit

Pc

Product Manual SE690CX

Download

Product manual for SE165CX, SE200CX & SE690CX
